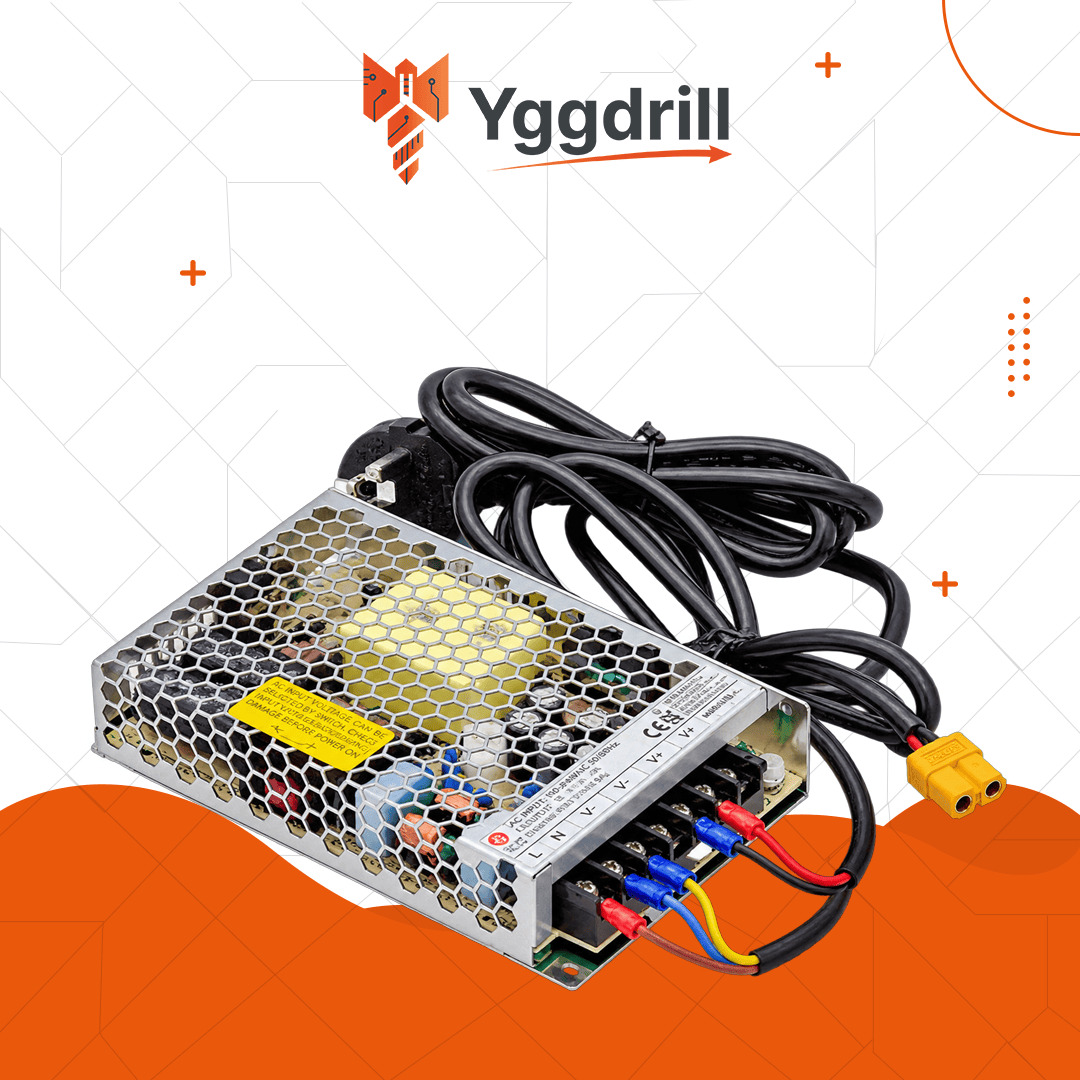

MEAN WELL LRS-150-12 150W Power Supply for NerdQaxe++ Rev 6.1 & Naja Duo
Reliable, stable power for continuous NerdQaxe++ Rev 6.1 and Naja Duo mining.
The MEAN WELL LRS-150-12 is a compact 12V switching power supply designed to deliver up to 12.5A of continuous current. With a rated output of 150W, it provides the stable power required by the NerdQaxe++ Rev 6.1 and Naja Duo while maintaining a compact footprint for home and desktop mining setups.
This kit comes pre-assembled with a compatible XT30 power cable and a region-specific mains input cable, giving you a practical power solution without needing to source or assemble the necessary cables separately.
Why choose the LRS-150-12?
- Genuine MEAN WELL LRS-150-12 power supply
- Compatible with NerdQaxe++ Rev 6.1 and Naja Duo
- Stable 12V output
- Delivers up to 12.5A and 150W of power
- Compatible XT30 output connector
- Compact low-profile metal enclosure
- Adjustable output voltage from approximately 10.2V to 13.8V
- Suitable for continuous 24/7 operation
- Pre-assembled for easier connection
- Includes a region-specific mains cable and XT30 power cable
Stable power for home mining
A dependable power supply is essential for keeping your miner running consistently. The LRS-150-12 provides regulated 12V power with enough current capacity to support the NerdQaxe++ Rev 6.1 and Naja Duo under sustained workloads.
Its 12.5A output capacity and 150W rating make it a practical match for either miner operating continuously as part of a home or desktop mining setup.
Pre-wired XT30 connection
The power supply is supplied with an XT30 output cable compatible with both the NerdQaxe++ Rev 6.1 and Naja Duo. The cable is pre-wired to the power supply, providing a simple connection without requiring you to assemble or terminate the DC output wiring yourself.
Compact and efficient design
Measuring only 159 × 97 × 30mm, the LRS-150-12 provides substantial power while maintaining a low-profile form factor. The ventilated metal enclosure protects the internal components while allowing free-air cooling during operation.
Technical specifications
-
Manufacturer: MEAN WELL
-
Model: LRS-150-12
-
Rated output voltage: 12V DC
-
Maximum output current: 12.5A
-
Rated power: 150W
-
Output adjustment range: Approximately 10.2–13.8V DC
-
DC connector: XT30
-
AC input: 115V or 230V, selected using the input-voltage switch
-
Dimensions: 159 × 97 × 30mm
-
Cooling: Free-air convection
-
Recommended use: NerdQaxe++ Rev 6.1, Naja Duo, and compatible 12V hardware using XT30 power input
What is included?
- 1 × MEAN WELL LRS-150-12 power supply
- 1 × Region-specific mains input cable
- 1 × Pre-wired XT30 power cable
Important to know
The LRS-150-12 uses exposed screw terminals and should be placed in a dry, well-ventilated location where the terminals cannot be touched accidentally or come into contact with conductive objects.
Always confirm that the input-voltage selector is set correctly for your local mains voltage before connecting the power supply. Incorrect voltage selection may damage the power supply or connected equipment.
This power supply is intended for compatible 12V equipment using an XT30 power connection. Check the voltage, current requirements, connector type, and polarity of your miner before use.
